Air Bubble Film Production Line
  • Air Bubble Film Production Line

Air Bubble Film Production Line

Product introduction

Feature:
This production employed V.F driver for speed regulation,performance stabilization,save energy consumption.
With difference size vacuum forming mould,this machine can make dia∮6.5~∮30mm with the height 2.5~15mm air bubble film.
With other assis device,this machine can make air bubble +aluminum lamination film or air bubble +EPE sheet.
The rewinder is overturn type,easy to operate.
This machine has air cooling and water cooling type which can help to make thicken orsuper thin air bubble film.
With the unique screw design,this machine suitable to LDPE、LLDPE and recycled raw material.

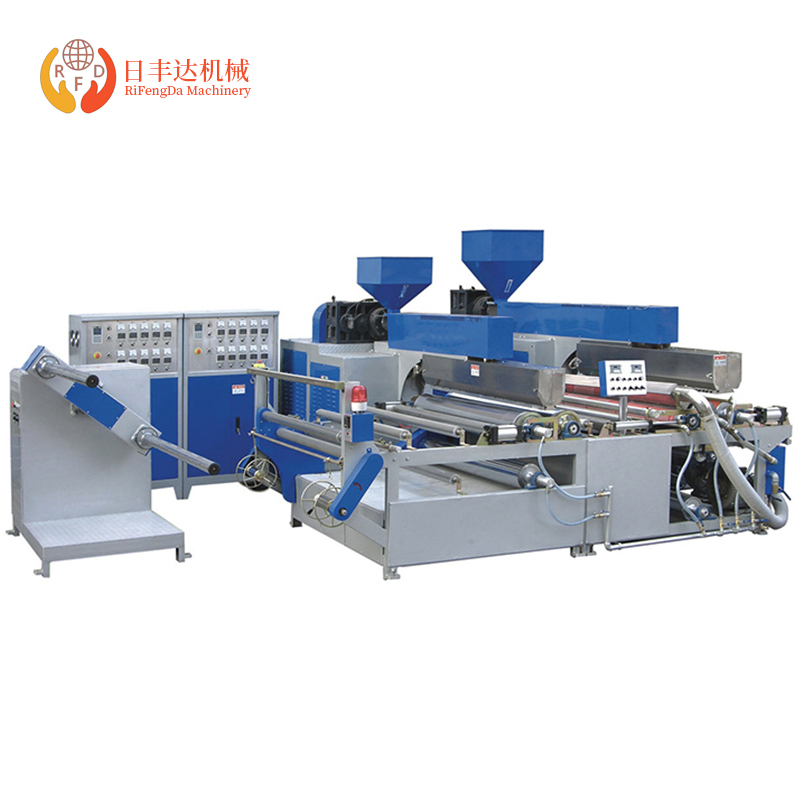

(1)Double Face Air Bubble Film Extrusion Machine
Feature:

1、Two extruders,three layers air bubble film.
2、Overturn rewinder.
3、Can make single face and double face air bubble film.

Main Parameters:

Model Material Width(mm) Max Output(kg/h) Total Power(kw) Weight(kg)
RFD-2400B LDPE 2400 250 220 7900
RFD-2000B LDPE 2000 200 165 7400
RFD-1800B LDPE 1800 160 135 6900
RFD-1600B LDPE 1600 140 105 6500
RFD-1500B LDPE 1500 120 105 6000
RFD-1200B LDPE 1200 100 90 5500
RFD-1000B LDPE 1000 80 80 5300


下载 (2).png

(2)Single Face Air Bubble Film Extrusion Machine
Feature:

1、One extruder,making two layers film.
2、Overturn rewinder.

Main Parameters:

Model Material Widht(mm) Max output(kg/h) Total power(kw) Weight(kg)
RFD-2400S LDPE 2400 180 150 6300
RFD-2000S LDPE 2000 140 108 5700
RFD-1800S LDPE 1800 110 85 5200
RFD-1600S LDPE 1600 100 65 4800
RFD-1500S LDPE 1500 85 65 4500
RFD-1200S LDPE 1200 75 55 4100
RFD-1000S LDPE 1000 60 53 3900
