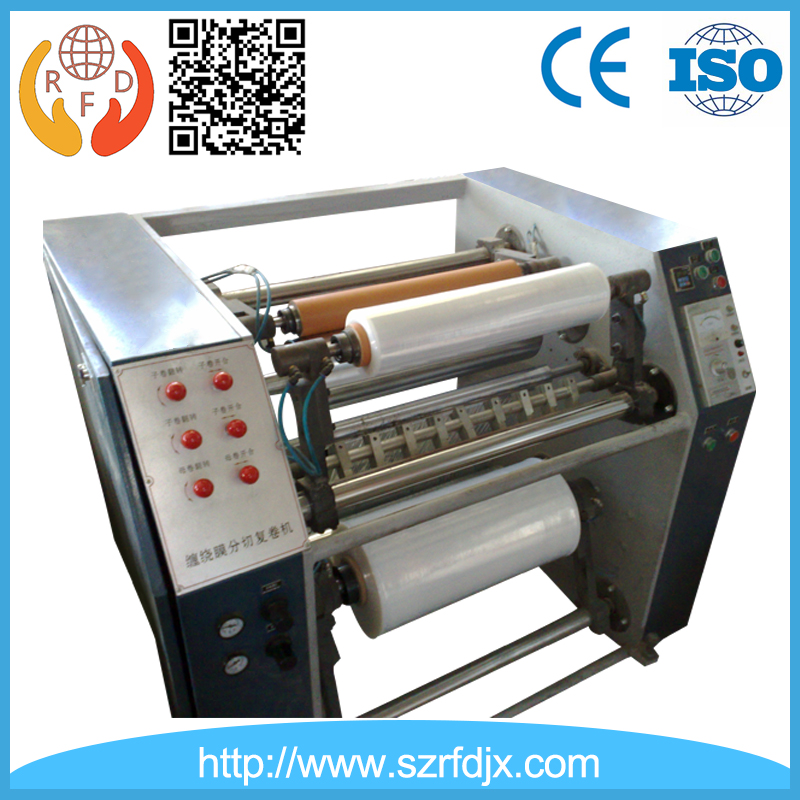

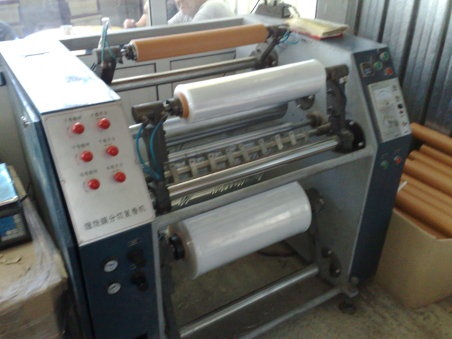

High Speed Semi-Automatic Stretch/Cling Film Rewinder
  • High Speed Semi-Automatic Stretch/Cling Film Rewinder
  • High Speed Semi-Automatic Stretch/Cling Film Rewinder

High Speed Semi-Automatic Stretch/Cling Film Rewinder


Product introduction

Details:
The machine is safe and easy to operate,it is make the winding material more even and soild. And the anti-puncture is better after contact with air.the unit is suitable for stretch film,warpping film ,casting film and preservative film to rewind.

Usage:
It is mainly used to make the big diameter volumes into small ones,to correct the wrong-layer by rewind to improve the evenness of the winding material and appearance quality;the unit adopts flat belt transmission leak to make the load material speed the same with the leak speed.it is also reduce the production of secondary membrane over-stretching,the friction pressure controlled by the cylinder.the units is convenient and flexible to adjust,small noise,frequency control,automatic meter winding,is the ideal cost performance winders.

Main Parameter:

Model RFD-500mm
Rewinder machine parent roll width of the 300-500mm
Main Motor Power 2.2KW
And move around motor 0.37KW
Mechanical speed 100-200M/MIN
Roll Type Artificial roll
Mother curly core specifications 3 inch
Mandrel size Sub-Volume 3 inch,2 inch,Φ30mm
Dimension(mm) 1400x 1000x 1100
Weight 600kg
